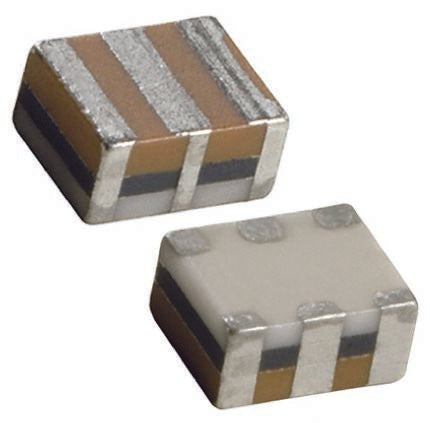

CSTCW32M0X51-R0, Ceramic Resonator, 32MHz 3rd Overtone 5pF, 3-Pin CSTCW, 2.5 x 2 x 1.5mm [CSTCW32M0X51-R0]; 624-1083
by Murata
0₫
Mã kho: 6241083
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resonance Frequency | 32MHz |
Frequency Tolerance | ±0.5% |
Mode of Oscillation | 3rd Overtone |
Load Capacitance | 5pF |
Resonance Resistance | 50Ω |
Frequency Ageing | ±0.1%/Year |
Frequency Stability | ±0.2% |
Mounting Type | Surface Mount |
Package Type | CSTCW |
Pin Count | 3 |
Dimensions | 2.5 x 2 x 1.5mm |
Height | 1.5mm |
Length | 2.5mm |
Maximum Operating Temperature | 80°C |
Minimum Operating Temperature | -20°C |
Width | 2mm |
