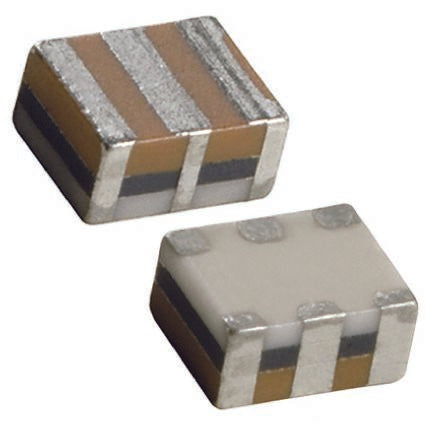

CSTCW32M0X51-R0, Ceramic Resonator, 32MHz 3rd Overtone 5pF, 3-Pin CSTCW, 2.5 x 2 x 1.5mm [CSTCW32M0X51-R0]; 166-9581
by Murata
0₫
Mã kho: 1669581
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resonance Frequency | 32MHz |
| Frequency Tolerance | ±0.5% |
| Mode of Oscillation | 3rd Overtone |
| Load Capacitance | 5pF |
| Resonance Resistance | 50Ω |
| Frequency Ageing | ±0.1%/Year |
| Frequency Stability | ±0.2% |
| Mounting Type | Surface Mount |
| Package Type | CSTCW |
| Pin Count | 3 |
| Dimensions | 2.5 x 2 x 1.5mm |
| Height | 1.5mm |
| Length | 2.5mm |
| Maximum Operating Temperature | 80°C |
| Width | 2mm |
| Minimum Operating Temperature | -20°C |
