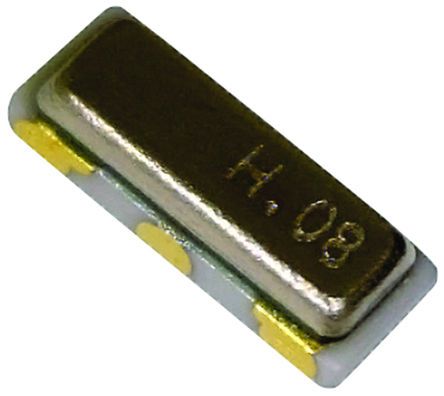

CSTCE14M7V53-R0, Ceramic Resonator, 14.74MHz Expander 15pF, 4-Pin, 3.2 x 1.3 x 0.9mm [CSTCE14M7V53-R0]; 106-2878
by Murata
0₫
Mã kho: 1062878
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resonance Frequency | 14.74MHz |
| Frequency Tolerance | ±0.5% |
| Mode of Oscillation | Expander |
| Load Capacitance | 15pF |
| Frequency Ageing | ±0.2% |
| Frequency Stability | ±0.3% |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Dimensions | 3.2 x 1.3 x 0.9mm |
| Height | 0.9mm |
| Length | 3.2mm |
| Maximum Operating Temperature | 80°C |
| Width | 1.3mm |
| Minimum Operating Temperature | -20°C |
