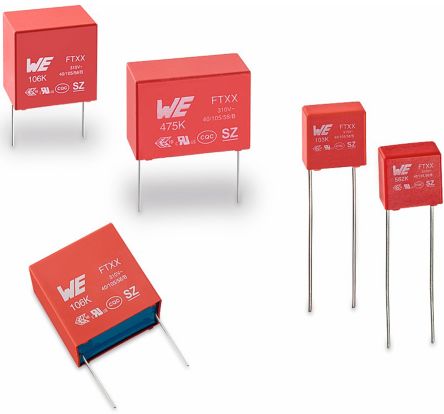

Wurth Elektronik 2.2μF Polypropylene Capacitor PP 310V ac ±10% Tolerance WCAP-FTXX Series [890334026034]; 124-7432
0₫
Mã kho: 1247432
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2.2 µF |
| Voltage | 310 V ac |
| Tolerance | ±10% |
| Series | WCAP-FTXX |
| Lead Pitch | 22.5mm |
| Suppression Class | X2 |
| Length | 26mm |
| Depth | 15mm |
| Height | 25mm |
| Dimensions | 26 x 15 x 25mm |
| Dielectric | MKP |
| Lead Length | 20mm |
| Dissipation Factor | 0.7 % @ 10 kHz |
| Terminal Type | Radial |
| Dielectric Material Family | Metallised Polypropylene Film |
| Lead Diameter | 0.8mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
