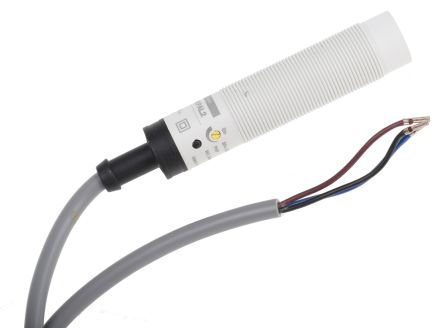

Telemecanique Sensors Capacitive sensor 8 mm length 80mm PNP-NO supply voltage 10 → 38 V dc IP67 [XT218A1PAL2]; 686-4759
0₫
Mã kho: 6864759
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NO |
| Detection Range | 8 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | Cable |
| IP Rating | IP67 |
| Maximum DC Voltage | 38V |
| Mounting Style | Non Flush |
| Length | 78mm |
| Switching Current | 200 mA |
| Housing Material | Plastic |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Switching Frequency | 100 Hz |
| Reverse Polarity Protection | Yes |
| Dimensions | 78 mm |
| Shielding | Unshielded |
