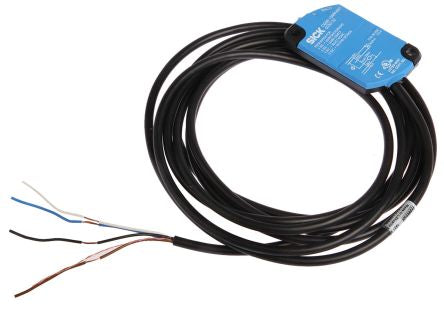

Sick Capacitive sensor 10 mm length 46mm PNP-NO/NC supply voltage 10 → 30 V dc IP68 [CQ28-10NPP-KW1]; 218-995
by Sick
0₫
Mã kho: 218995
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO/NC |
| Detection Range | 10 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | Cable |
| IP Rating | IP68 |
| Maximum DC Voltage | 30V |
| Mounting Style | Non Flush |
| Length | 46mm |
| Width | 27.6mm |
| Depth | 5.5mm |
| Switching Current | 200 mA |
| Minimum Operating Temperature | -20°C |
| Short Circuit Overload Protection | Yes |
| Housing Material | Plastic |
| Reverse Polarity Protection | Yes |
| Dimensions | 46 x 27.6 x 5.5 mm |
| Switching Frequency | 10 Hz |
| Maximum Operating Temperature | +85°C |
