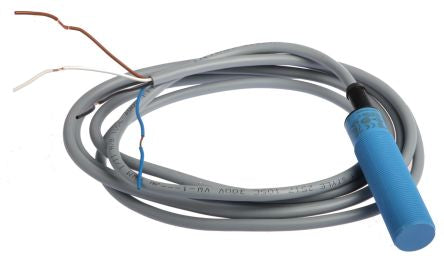

Sick Capacitive sensor 3 → 12 mm length 86mm PNP-NO/NC supply voltage 10 → 36 V dc IP68, IP69K [CM18-12NPP-EW1]; 127-8118
by Sick
0₫
Mã kho: 1278118
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NO/NC |
| Detection Range | 12 mm |
| Supply Voltage | 10 → 36 V dc |
| Terminal Type | Cable |
| IP Rating | IP68, IP69K |
| Maximum DC Voltage | 36V |
| Mounting Style | Non Flush |
| Length | 86mm |
| Width | 18mm |
| Switching Current | <200 mA |
| Standards Met | CE, CSA, CULus, EcoLab |
| Maximum Operating Temperature | +85°C |
| Dimensions | 18 (Dia.) x 86 mm |
| Reverse Polarity Protection | Yes |
| Switching Frequency | 50 Hz |
| Shielding | Unshielded |
| Short Circuit Overload Protection | Yes |
| Housing Material | PBT |
| Minimum Operating Temperature | -30°C |
