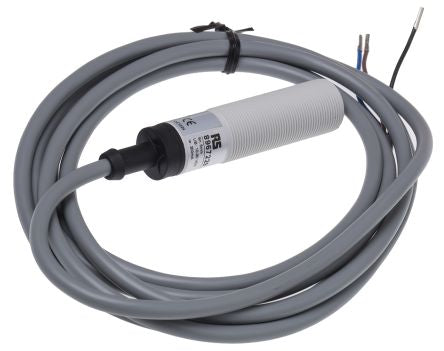

RS PRO Capacitive sensor 5 mm length 70mm NPN-NO supply voltage 10 → 30 V dc IP67; 896-7229
by RS PRO
0₫
Mã kho: 8967229
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | NPN-NO |
| Detection Range | 5 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | Cable |
| IP Rating | IP67 |
| Maximum DC Voltage | 30V |
| Mounting Style | Flush |
| Length | 70mm |
| Switching Current | ≤200 mA |
| Dimensions | Ø 18 x 70 mm |
| Maximum Operating Temperature | +70°C |
| Housing Material | PBT |
| Minimum Operating Temperature | -25°C |
| Shielding | Shielded |
| Reverse Polarity Protection | Yes |
| Switching Frequency | 50 Hz |
| Standards Met | CE, IEC |
| Short Circuit Overload Protection | Yes |
