Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

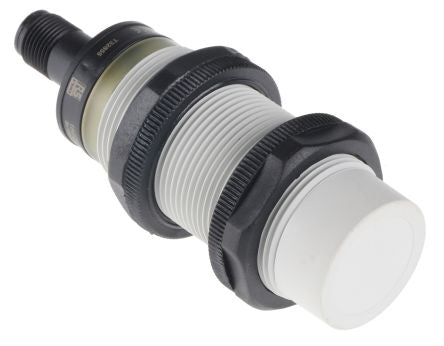

| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | NPN-NO/NC |
| Detection Range | 15 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Maximum DC Voltage | 30V |
| Mounting Style | Non Flush |
| Length | 91mm |
| Switching Current | 15 mA |
| Housing Material | PBT |
| Switching Frequency | 50 Hz |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Short Circuit Overload Protection | Yes |
