Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

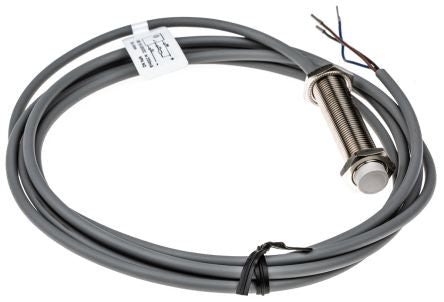

| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | NPN-NO |
| Detection Range | 4 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | Cable |
| IP Rating | IP67 |
| Maximum DC Voltage | 30V |
| Mounting Style | Non Flush |
| Length | 56mm |
| Switching Current | 15 mA |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Short Circuit Overload Protection | Yes |
| Switching Frequency | 50 Hz |
| Housing Material | Copper Alloy |
| Minimum Operating Temperature | -25°C |
