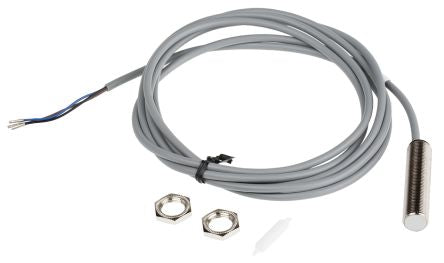

RS PRO Capacitive sensor 2 mm length 52mm PNP-NO supply voltage 10 → 30 V dc IP67; 146-6751
by RS PRO
0₫
Mã kho: 1466751
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Barrel |
Thread Size | M12 x 1 |
Output Type | PNP-NO |
Detection Range | 2 mm |
Supply Voltage | 10 → 30 V dc |
Terminal Type | Cable |
IP Rating | IP67 |
Maximum DC Voltage | 30V |
Mounting Style | Flush |
Length | 52mm |
Switching Current | 200 mA |
Maximum Operating Temperature | +70°C |
Reverse Polarity Protection | Yes |
Shielding | Unshielded |
Minimum Operating Temperature | -25°C |
Housing Material | Nickel Copper Alloy |
Short Circuit Overload Protection | Yes |
Standards Met | CE |
Switching Frequency | 50 Hz |
