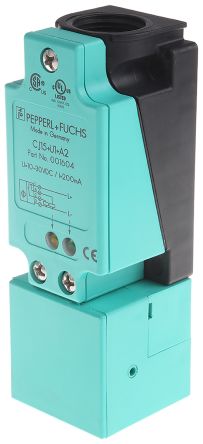

Pepperl + Fuchs Capacitive sensor 15 mm length 118mm PNP-NO/NC supply voltage 10 → 30 V dc IP65 [CJ15+U1+A2]; 280-6529
0₫
Mã kho: 2806529
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO/NC |
| Detection Range | 15 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M20 Gland |
| IP Rating | IP65 |
| Maximum DC Voltage | 30V |
| Mounting Style | Flush |
| Length | 118mm |
| Width | 40mm |
| Depth | 40mm |
| Switching Current | 200 mA |
| Housing Material | PBT |
| Short Circuit Overload Protection | Yes |
| Switching Frequency | 0 → 10 Hz |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Dimensions | 118 x 40 x 40 mm |
| Maximum Operating Temperature | +70°C |
