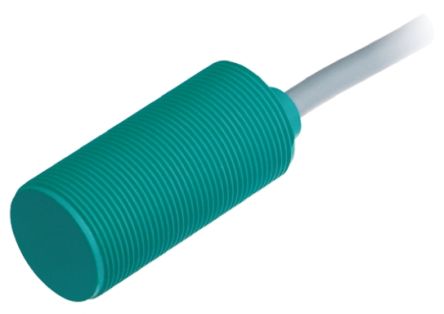

Pepperl + Fuchs Capacitive sensor 15 mm PNP-NO supply voltage 10 → 30 V dc IP67 [CBN15-30GK60-E2]; 769-6807
0₫
Mã kho: 7696807
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Barrel |
Thread Size | M30 x 1.5 |
Output Type | PNP-NO |
Detection Range | 15 mm |
Supply Voltage | 10 → 30 V dc |
Terminal Type | Cable |
IP Rating | IP67 |
Maximum DC Voltage | 30V |
Mounting Style | Non Flush |
Depth | 60mm |
Switching Current | 200 mA |
Reverse Polarity Protection | Yes |
Housing Material | PBT |
Short Circuit Overload Protection | Yes |
Maximum Operating Temperature | +70°C |
Switching Frequency | 0 → 10 Hz |
Dimensions | 30 (Dia.) x 60 mm |
Minimum Operating Temperature | -25°C |
