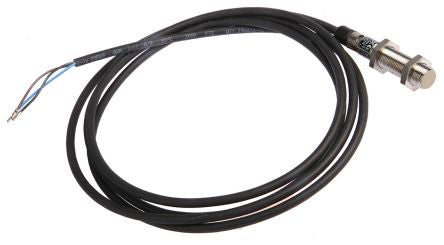

Pepperl + Fuchs Capacitive sensor 4 mm length 69mm PNP-NO supply voltage 10 → 36 V dc IP65 [CBB4-12GH70-E2]; 328-1498
0₫
Mã kho: 3281498
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | PNP-NO |
| Detection Range | 4 mm |
| Supply Voltage | 10 → 36 V dc |
| Terminal Type | Cable |
| IP Rating | IP65 |
| Maximum DC Voltage | 36V |
| Mounting Style | Flush |
| Length | 69mm |
| Switching Current | 100 mA |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 0 → 50 Hz |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Housing Material | Stainless Steel |
