![Pepperl + Fuchs CBB4-12GH60-E2-V1 1848808](http://nguyenxuong.com/cdn/shop/products/R1848808-01_444x424.jpg?v=1594429652)

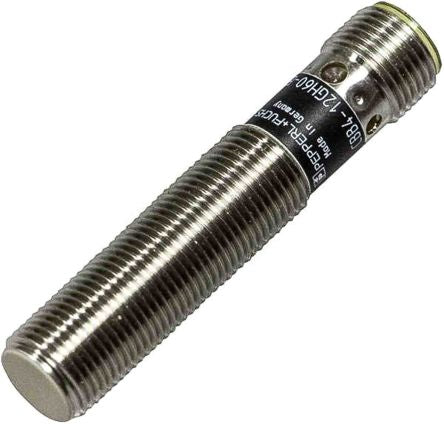

Pepperl + Fuchs Capacitive Proximity Sensor Amplifier 4 mm length 59.8mm PNP supply voltage 10 → 36 V dc IP65 [CBB4-12GH60-E2-V1]; 184-8808
0₫
Mã kho: 1848808
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Barrel |
Thread Size | M12 x 1 |
Output Type | PNP-NO |
Detection Range | 4 mm |
Supply Voltage | 10 → 36 V dc |
Terminal Type | M12 - 4 Pin |
IP Rating | IP65 |
Maximum DC Voltage | 36V |
Mounting Style | Flush |
Length | 59.8mm |
Switching Current | 100 mA |
Reverse Polarity Protection | Yes |
Maximum Operating Temperature | +70°C |
Switching Frequency | 50 Hz |
Standards Met | CCSAus Listed, CE Certified, CULus Listed, EN 60947-5-2, IEC 60947-5-2 |
Minimum Operating Temperature | -25°C |
Short Circuit Overload Protection | Yes |
Housing Material | Stainless Steel |
