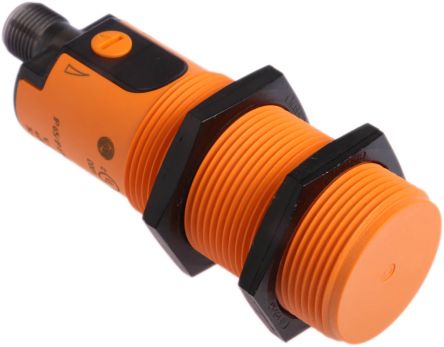

ifm Electronic IO-Link Capacitive sensor 0.5 → 40 mm length 92mm PNP-NO supply voltage 10 → 30 V dc [KI5309]; 144-4449
0₫
Mã kho: 1444449
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP-NO |
| Detection Range | 40 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| Communication Protocol | IO-LINK |
| IP Rating | IP65, IP67, IP69K |
| Maximum DC Voltage | 30V |
| Mounting Style | Non Flush |
| Length | 92mm |
| Interface | IO-Link |
| Switching Current | <22 mA |
| Minimum Operating Temperature | -25°C |
| Switching Frequency | 40 Hz |
| Standards Met | CE, CULus, DIN EN 60947-5-2, EAC, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, IEC 61131-9 |
| Short Circuit Overload Protection | Yes |
| Housing Material | PBT, PC, POM |
| Reverse Polarity Protection | Yes |
| Shielding | Unshielded |
| Maximum Operating Temperature | +80°C |
