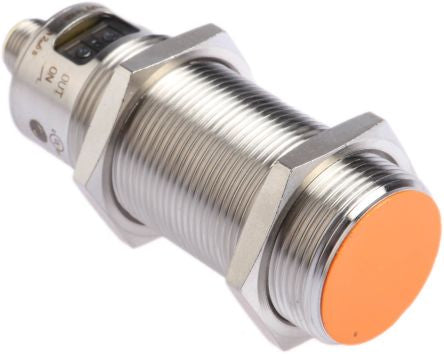

ifm Electronic IO-Link Capacitive sensor 8 mm length 90mm PNP-NO/NC supply voltage 10 → 36 V dc IP65, IP67 [KI5085]; 554-649
0₫
Mã kho: 554649
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP-NO/NC |
| Detection Range | 8 mm |
| Supply Voltage | 10 → 36 V dc |
| Terminal Type | M12 - 4 Pin |
| Communication Protocol | IO-LINK |
| IP Rating | IP65, IP67 |
| Maximum DC Voltage | 36V |
| Mounting Style | Flush |
| Length | 90mm |
| Interface | IO-Link |
| Switching Current | 100 mA |
| Switching Frequency | 10 Hz |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +80°C |
| Short Circuit Overload Protection | Yes |
