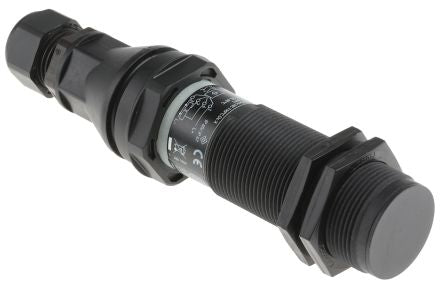

ifm Electronic Capacitive sensor 15 mm length 150mm PNP-NO supply voltage 10 → 30 V dc IP65, IP67 [KI503A]; 787-1332
0₫
Mã kho: 7871332
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP-NO |
| Detection Range | 15 mm |
| Supply Voltage | 10 → 30 V dc |
| IP Rating | IP65, IP67 |
| Maximum DC Voltage | 30V |
| Mounting Style | Non Flush |
| Length | 150mm |
| Switching Current | 200 mA |
| Housing Material | Polyamide |
| Short Circuit Overload Protection | Yes |
| Switching Frequency | 10 Hz |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +60°C |
| Shielding | Unshielded |
| Minimum Operating Temperature | -20°C |
