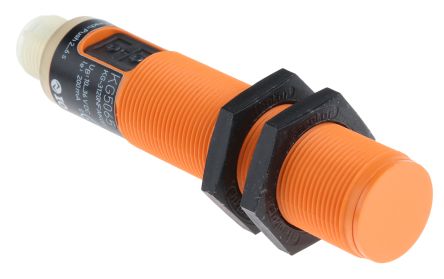

ifm Electronic IO-Link Capacitive sensor 12 mm length 87mm PNP/NPN-NO/NC supply voltage 10 → 36 V dc IP65, IP67 [KG5065]; 814-0342
0₫
Mã kho: 8140342
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP/NPN-NO/NC |
| Detection Range | 12 mm |
| Supply Voltage | 10 → 36 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP65, IP67 |
| Communication Protocol | IO-LINK |
| Maximum DC Voltage | 36V |
| Mounting Style | Non Flush |
| Length | 87mm |
| Interface | IO-Link |
| Switching Current | 200 mA |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +80°C |
| Housing Material | PBT, PC, TPE-U |
| Short Circuit Overload Protection | Yes |
| Switching Frequency | 10 Hz |
| Dimensions | Ø 18 x 87 mm |
| Minimum Operating Temperature | -25°C |
