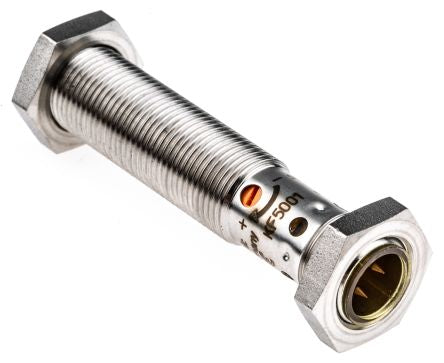

ifm Electronic Capacitive sensor 1 → 6 mm length 61.2mm PNP-NO supply voltage 10 → 36 V dc IP65 [KF5001]; 814-0339
0₫
Mã kho: 8140339
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Barrel |
Thread Size | M12 x 1 |
Output Type | PNP-NO |
Detection Range | 6 mm |
Supply Voltage | 10 → 36 V dc |
Terminal Type | M12 - 4 Pin |
IP Rating | IP65 |
Maximum DC Voltage | 36V |
Mounting Style | Non Flush |
Length | 61.2mm |
Switching Current | 100 mA |
Dimensions | Ø 12 x 59.8 mm |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +70°C |
Housing Material | PEEK, Stainless Steel |
Short Circuit Overload Protection | Yes |
Switching Frequency | 50 Hz |
Reverse Polarity Protection | Yes |
