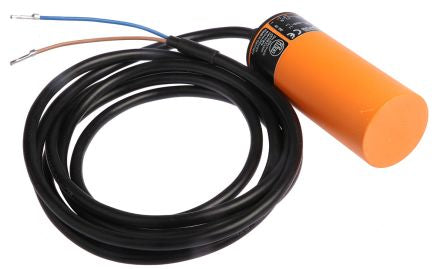

ifm Electronic Capacitive sensor 20 mm length 99mm supply voltage 20 → 250 V ac/dc IP65 [KB0025]; 158-5063
0₫
Mã kho: 1585063
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Detection Range | 20 mm |
| Supply Voltage | 20 → 250 V ac/dc |
| Terminal Type | Cable |
| IP Rating | IP65 |
| Maximum DC Voltage | 250V |
| Mounting Style | Non Flush |
| Length | 99mm |
| Maximum AC Voltage | 250V |
| Switching Current | 250 mA |
| Housing Material | PBT |
| Switching Frequency | 25 (ac) Hz, 40 (dc) Hz |
| Dimensions | 34 x 99 mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
