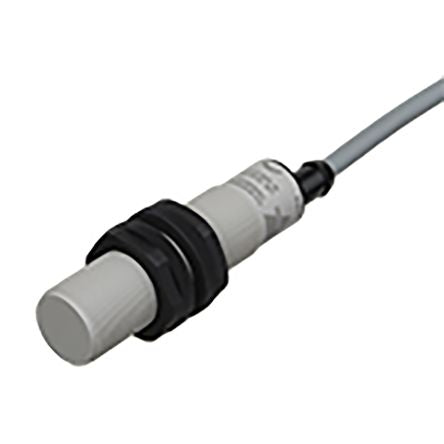

CAP PROX PL M18 FLUSH IO-LINK, PLUG [CA18CAF08BPM1IO]; 188-5247
0₫
Mã kho: 1885247
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP/NPN-NO/NC |
| Detection Range | 8 mm |
| Supply Voltage | 10 → 40 V dc |
| Terminal Type | M12 - 4 Pin |
| Communication Protocol | IO-LINK |
| IP Rating | IP67, IP68, IP69K |
| Maximum DC Voltage | 40V |
| Mounting Style | Flush |
| Length | 85mm |
| Interface | IO-Link |
| Switching Current | 20 mA |
| Housing Material | PBT |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -30°C |
| Shielding | Shielded |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +85°C |
| Switching Frequency | 50 Hz |
