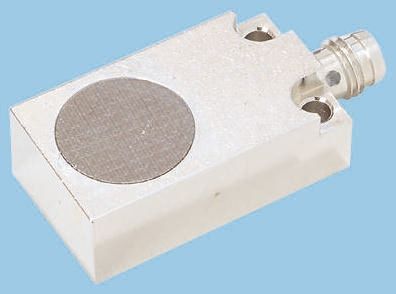

Baumer Capacitive sensor 5 mm length 44mm PNP-NO supply voltage 10 → 30 V dc IP65 [CFDM 20P 1500 S35L]; 446-0204
by Baumer
0₫
Mã kho: 4460204
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO |
| Detection Range | 5 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M8 - 3 Pin |
| IP Rating | IP65 |
| Maximum DC Voltage | 30V |
| Mounting Style | Flush |
| Length | 44mm |
| Width | 20mm |
| Depth | 12mm |
| Switching Current | 200 mA |
| Minimum Operating Temperature | -25°C |
| Shielding | Shielded |
| Maximum Operating Temperature | +75°C |
| Housing Material | Nickel Plated Brass |
| Short Circuit Overload Protection | Yes |
| Standards Met | CE, CULus |
| Switching Frequency | 50 Hz |
| Reverse Polarity Protection | Yes |
| Dimensions | 44 x 20 x 12 mm |
