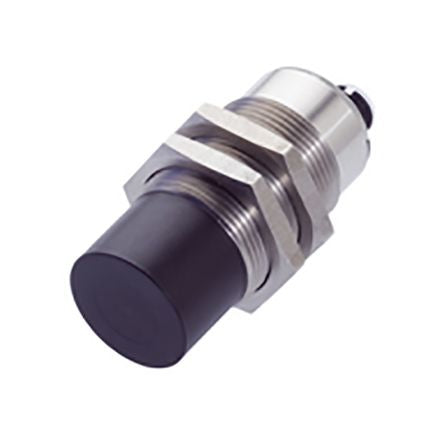

BALLUFF Capacitive sensor 25 mm length 78.5mm PNP-NO supply voltage 10 → 30 V dc IP67 [BCS M30B4E2-PSC25H-S04K]; 902-7515
by BALLUFF
0₫
Mã kho: 9027515
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP-NO |
| Detection Range | 25 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Maximum DC Voltage | 30V |
| Mounting Style | Non Flush |
| Length | 78.5mm |
| Switching Current | 100 mA |
| Reverse Polarity Protection | Yes |
| Switching Frequency | 100 Hz |
| Standards Met | CE, CULus Listed |
| Maximum Operating Temperature | +85°C |
| Housing Material | Stainless Steel |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Shielding | Unshielded |
