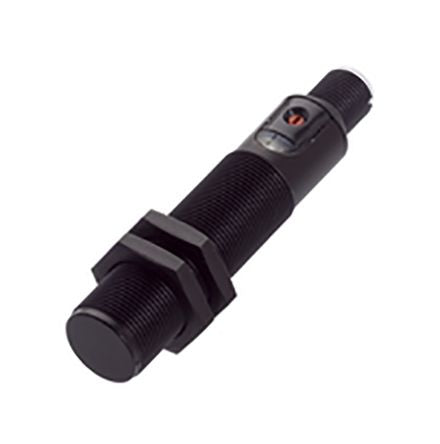

BALLUFF Capacitive sensor 2 → 8 mm length 88.5mm PNP-NO supply voltage 10 → 30 V dc IP67 [BCS M18BBI3-PSC80D-S04K]; 902-7449
by BALLUFF
0₫
Mã kho: 9027449
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NO |
| Detection Range | 8 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Maximum DC Voltage | 30V |
| Mounting Style | Flush |
| Length | 88.5mm |
| Switching Current | 100 mA |
| Minimum Operating Temperature | -25°C |
| Standards Met | CE, CULus Listed |
| Switching Frequency | 100 Hz |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +85°C |
| Shielding | Shielded |
| Short Circuit Overload Protection | Yes |
| Housing Material | PBT |
