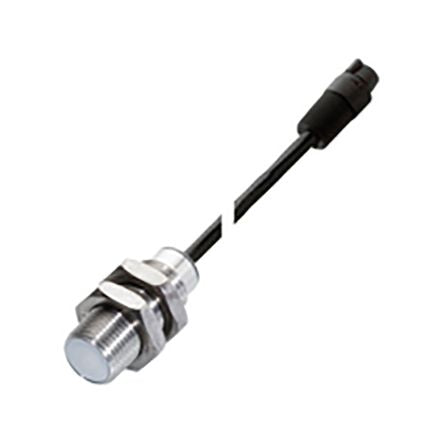

BALLUFF Capacitive sensor 0.1 → 4 mm length 30mm Amplifier Sensor supply voltage 4 → 8 V dc IP67 [BCS M12T4D-XXS40C-EP02-GZ01-002]; 902-7408
by BALLUFF
0₫
Mã kho: 9027408
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | Amplifier Interface |
| Detection Range | 4 mm |
| Supply Voltage | 4 → 8 V dc |
| Terminal Type | Cable |
| IP Rating | IP67 |
| Maximum DC Voltage | 8V |
| Mounting Style | Flush |
| Length | 30mm |
| Housing Material | V2A |
| Standards Met | CE |
| Maximum Operating Temperature | +80°C |
| Switching Frequency | 100 Hz |
| Shielding | Partial |
| Minimum Operating Temperature | -30°C |
