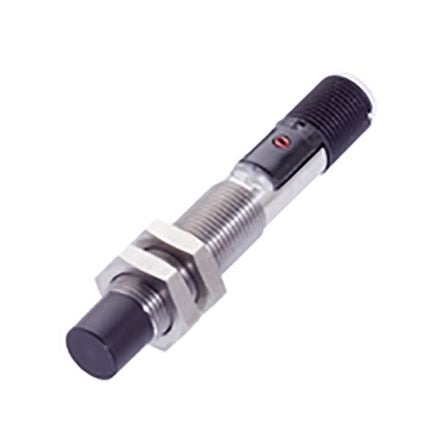

BALLUFF Capacitive sensor 8 mm length 75mm PNP-NO supply voltage 10 → 30 V dc IP67 [BCS M12BBE2-PSC80H-S04K]; 902-7492
by BALLUFF
0₫
Mã kho: 9027492
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Barrel |
Thread Size | M12 x 1 |
Output Type | PNP-NO |
Detection Range | 8 mm |
Supply Voltage | 10 → 30 V dc |
Terminal Type | M12 - 4 Pin |
IP Rating | IP67 |
Maximum DC Voltage | 30V |
Mounting Style | Non-flush |
Length | 75mm |
Switching Current | 100 mA |
Maximum Operating Temperature | +85°C |
Shielding | Unshielded |
Short Circuit Overload Protection | Yes |
Housing Material | PBT |
Reverse Polarity Protection | Yes |
Switching Frequency | 100 Hz |
Standards Met | CE, CULus Listed |
Minimum Operating Temperature | -25°C |
