![BALLUFF BCS M08T4E2-PSM15C-S49G 9027420](http://nguyenxuong.com/cdn/shop/products/F9027420-01_444x395.jpg?v=1594233026)

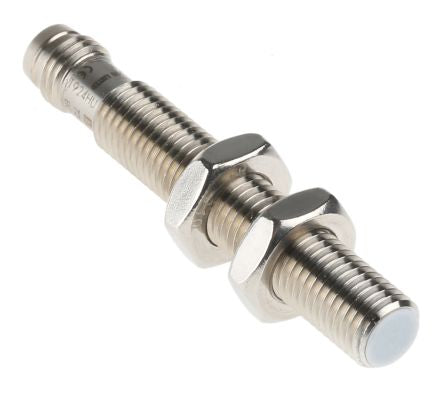

BALLUFF Capacitive sensor 1.5 mm length 54mm PNP-NO supply voltage 11 → 30 V dc IP65 [BCS M08T4E2-PSM15C-S49G]; 902-7420
by BALLUFF
0₫
Mã kho: 9027420
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Barrel |
Thread Size | M8 x 1 |
Output Type | PNP-NO |
Detection Range | 1.5 mm |
Supply Voltage | 11 → 30 V dc |
Terminal Type | M8 - 3 Pin |
IP Rating | IP65 |
Maximum DC Voltage | 30V |
Mounting Style | Flush |
Length | 54mm |
Switching Current | 50 mA |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +70°C |
Shielding | Shielded |
Housing Material | Stainless Steel |
Standards Met | CE, CULus Listed |
Switching Frequency | 100 Hz |
Reverse Polarity Protection | Yes |
Short Circuit Overload Protection | Yes |
