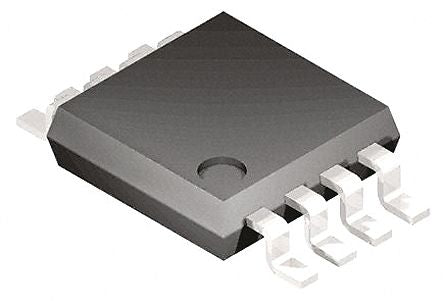

Infineon TLE6251DSXUMA1, CAN Transceiver 1MBd 1-Channel ISO/DIS 11898, 8-Pin DSO [TLE6251DSXUMA1]; 145-8819
by Infineon
0₫
Mã kho: 1458819
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Data Rate | 1MBd |
| Number of Transceivers | 1 |
| Standard Supported | ISO/DIS 11898 |
| Power Down Mode | Standby |
| Maximum Supply Current | 70 mA |
| Mounting Type | Surface Mount |
| Package Type | DSO |
| Pin Count | 8 |
| Dimensions | 5 x 4 x 1.45mm |
| Length | 5mm |
| Width | 4mm |
| Height | 1.45mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q100 |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 4.75 V |
