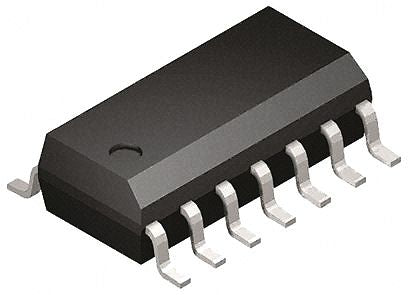

Infineon TLE62513GXUMA1, CAN Transceiver 1MBps 1-Channel ISO 11898-5, 14-Pin DSO [TLE62513GXUMA1]; 145-9480
by Infineon
0₫
Mã kho: 1459480
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Data Rate | 1Mbps |
| Number of Transceivers | 1 |
| Standard Supported | ISO 11898-5 |
| Power Down Mode | Sleep |
| Maximum Supply Current | 80 mA |
| Mounting Type | Surface Mount |
| Package Type | DSO |
| Pin Count | 14 |
| Dimensions | 8.75 x 4 x 1.5mm |
| Length | 8.75mm |
| Width | 4mm |
| Height | 1.5mm |
| Maximum Operating Supply Voltage | 18 V |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q100 |
| Minimum Operating Supply Voltage | 5.5 V |
| Minimum Operating Temperature | -40 °C |
