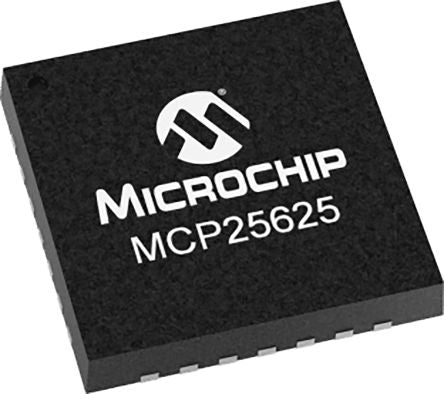

Microchip Technology MCP25625T-E/ML, CAN Controller 1Mbit/s CAN 2.0B, 28-Pin QFN [MCP25625T-E/ML]; 177-2856
by Microchip
0₫
Mã kho: 1772856
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Data Rate | 1Mbit/s |
| Number of Transceivers | 1 |
| Standard Supported | CAN 2.0B |
| Power Down Mode | Sleep, Standby |
| Maximum Supply Current | 10 mA |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 28 |
| Dimensions | 6 x 6 x 0.92mm |
| Length | 6mm |
| Width | 6mm |
| Height | 0.92mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Minimum Operating Temperature | -40 °C |
