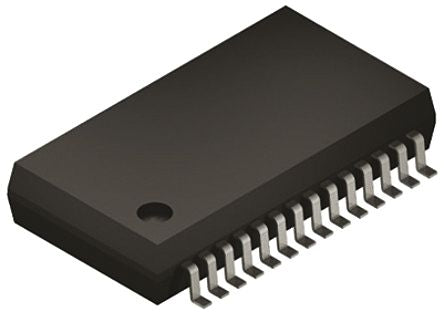

Microchip MCP25625-E/SS, CAN Controller 1MBps CAN 2.0, 28-Pin SSOP [MCP25625-E/SS]; 165-1935
by Microchip
0₫
Mã kho: 1651935
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Data Rate | 1Mbps |
| Number of Transceivers | 3 |
| Standard Supported | CAN 2.0 |
| Power Down Mode | Sleep |
| Maximum Supply Current | 70 mA |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 28 |
| Dimensions | 10.5 x 5.6 x 1.85mm |
| Length | 10.5mm |
| Width | 5.6mm |
| Height | 1.85mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Minimum Operating Temperature | -40 °C |
