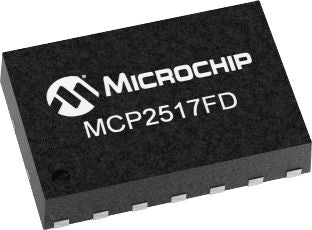

Microchip MCP2517FD-H/JHA, CAN Controller 8Mbit/s CAN 2.0B, 14-Pin VDFN [MCP2517FD-H/JHA]; 162-3017
by Microchip
0₫
Mã kho: 1623017
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Data Rate | 8Mbit/s |
| Number of Transceivers | 1 |
| Standard Supported | CAN 2.0B |
| Power Down Mode | Sleep, Standby |
| Maximum Supply Current | 20 mA |
| Mounting Type | Surface Mount |
| Package Type | VDFN |
| Pin Count | 14 |
| Dimensions | 4.5 x 3 x 0.85mm |
| Length | 4.5mm |
| Width | 3mm |
| Height | 0.85mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Minimum Operating Temperature | -40 °C |
