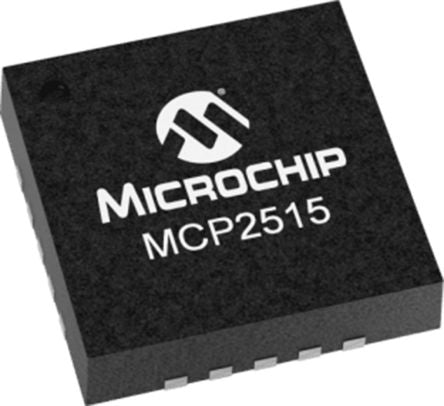

Microchip Technology MCP2515T-I/ML, CAN Controller 1Mbit/s, 20-Pin QFN [MCP2515T-I/ML]; 177-3116
by Microchip
0₫
Mã kho: 1773116
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Data Rate | 1Mbit/s |
| Number of Transceivers | 1 |
| Power Down Mode | Sleep, Standby |
| Maximum Supply Current | 10 mA |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 20 |
| Dimensions | 4 x 4 x 0.95mm |
| Length | 4mm |
| Width | 4mm |
| Height | 0.95mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2.7 V |
