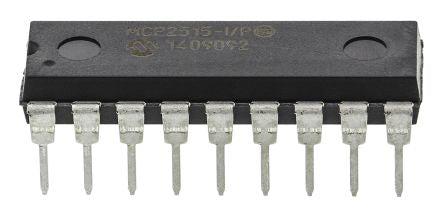

Microchip MCP2515-I/P, CAN Controller 1MBps CAN 2.0B, 18-Pin PDIP [MCP2515-I/P]; 144-5764
by Microchip
0₫
Mã kho: 1445764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Data Rate | 1Mbps |
| Number of Transceivers | 1 |
| Standard Supported | CAN 2.0B |
| Power Down Mode | Sleep, Standby |
| Maximum Supply Current | 10 mA |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 18 |
| Dimensions | 22.86 x 6.35 x 3.3mm |
| Length | 22.86mm |
| Width | 6.35mm |
| Height | 3.3mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2.7 V |
