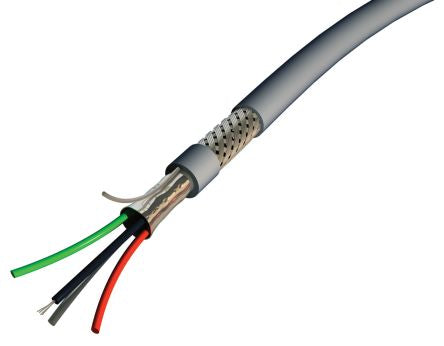

S2Ceb-Groupe Cae 4 Core 0.34 mm² Electrical Cable, Grey Polyvinyl Chloride PVC Sheath 100m, 300 V, [DMX512]; 373-0120
0₫
Mã kho: 3730120
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.34 mm² |
| Sheath Colour | Grey |
| Length | 100m |
| Voltage Rating | 300 V |
| Outer Diameter | 7mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Series | S2CEB |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +70°C |
| Conductor Strand Type | Stranded |
| Core Strands | 7/0.25 mm |
| Conductor Material | Tinned Copper |
| Size of Strands | 0.25 mm |
| Number of Strands | 7 |
| American Wire Gauge | 22 AWG |
| Conductor Resistance | 53 Ω/km |
| Fire Behaviour | Flame Retardant, Self-extinguishing |
| Insulation Material | Polyethylene |
| Standards Met | RoHS Compliant |
