The cable tie mount in black is applied with a #8 (M4) screw and is 0.61" (15.5 mm) wide. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It comes in packages

Name: The cable tie mount in black is applied with a #8 (M4) screw and is 0.61" (15.5 mm) wide. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It comes in packages
Brand: Panduit
SKU: PAP394
Price: 9700.0 VND
Availability: InStock

by Panduit

9.700₫

(Giá chưa VAT).

Mã kho: PAP394

Mã nhà sản xuất: TM3S8-M0

Đơn vị tính: PC

Quy cách đóng gói: 1,000

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit TM3S8-M0

MÔ TẢ SẢN PHẨM

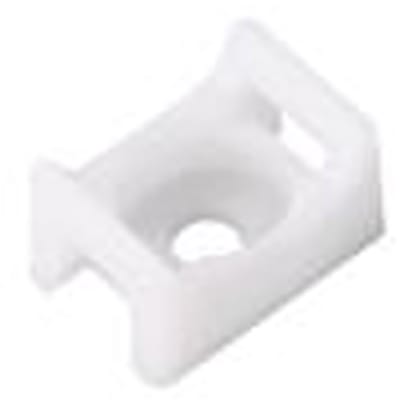

Panduit TM3S8-M0 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. For outdoor use and are suitable for miniature, intermediate and standard cross-section cable tie

_THÔNG SỐ KỸ THUẬT:

Application	Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
Product Type	Cable Tie Mount
Color	Black
Environment	Indoor/Outdoor
Material	Weather Resistant Nylon 6.6
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Mount Method	Screw
Mounting Hole Thread Size	#8
Overall Height (In.)	0.373
Overall Height (mm)	9.4
Overall Length (In.)	0.86
Overall Length (mm)	21.9
Overall Width (In.)	0.61
Overall Width (mm)	50.3
Resistance Properties	UV Resistant
Standards Met	CE Compliant, UL Recognized:E136577, RoHS Compliant
For Use With	Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties
