Panduit Cable & Wire Ties, Mounts & Straps, [SMS-A-D15]; PAF234

Name: Panduit Cable & Wire Ties, Mounts & Straps, [SMS-A-D15]; PAF234
Brand: Panduit
SKU: PAF234
Price: 20600.0 VND
Availability: InStock

by Panduit

20.600₫

(Giá chưa VAT).

Mã kho: PAF234

Mã nhà sản xuất: SMS-A-D15

Đơn vị tính: PC

Quy cách đóng gói: 500

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit SMS-A-D15

MÔ TẢ SẢN PHẨM

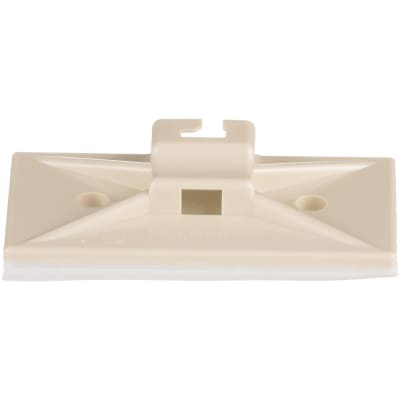

Panduit SMS-A-D15 Snap-In Cable Mounts eliminate protruding tie heads and facilitate one hand tie threading. The integral retaining notch allows cable tie heads to be held in place below bundle. Applied with rubber adhesive tape and are designed for use in indoor environments where mounting holes ca

_THÔNG SỐ KỸ THUẬT:

Application	Snap-In Cable Tie Mounts – Mechanically Applied, Used with Panduit Standard Cross Section Cable Ties Including Plt1S, Plt1.5S, Plt2S, Prt1.5S And Prt2S. Used to Quickly Route Wire and Cable Where Mounting Holes Cannot be Drilled
Product Type	Cable Tie Mount
Color	Gray
Environment	Indoor
Material	ABS
Maximum Operating Temperature (°C)	49
Maximum Operating Temperature (°F)	120
Minimum Operating Temperature (°C)	-29
Minimum Operating Temperature (°F)	-20
Mount Method	Rubber Adhesive Tape
Mounting Hole Thread Size	#6
Overall Height (In.)	0.31
Overall Height (mm)	7.9
Overall Length (In.)	2.06
Overall Length (mm)	52.3
Overall Width (In.)	1.04
Overall Width (mm)	50.3
Standards Met	CE Compliant, UL Recognized E136577, RoHS Compliant
Static Load Capacity (kg)	0.454
Static Load Capacity (lb)	1
For Use With	Standard Cross-Section Ties
