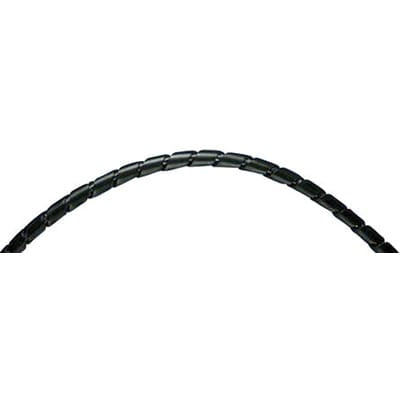

Panduit Spiral wrap, offers abrasion protection for wires, cables, hoses and tubing, .50" (12.7mm) x 100', weather resistant polyethylene, black. [T50F-C0]; PAP233

Name: Panduit Spiral wrap, offers abrasion protection for wires, cables, hoses and tubing, .50" (12.7mm) x 100', weather resistant polyethylene, black. [T50F-C0]; PAP233
Brand: Panduit
SKU: PAP233
Price: 5463000.0 VND
Availability: InStock

by Panduit

5.463.000₫

(Giá chưa VAT).

Mã kho: PAP233

Mã nhà sản xuất: T50F-C0

Đơn vị tính: PK

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T50F-C0

MÔ TẢ SẢN PHẨM

The T50F-C0 Polyethylene Spiral Wrap Product provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts of single or multiple cables. Lightweight, flexible, durable protection allows fo

_THÔNG SỐ KỸ THUẬT:

Application	Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Product Type	Spiral Wrap
Color	Black
Environment	Indoor and Outdoor
Flammability Rating	UL94-HB
Includes	Installation Tool
Material	Weather Resistant Polyethylene
Resistance Properties	Abrasion Resistance; Weather Resistant
Maximum Bundle Diameter (In.)	4
Maximum Bundle Diameter (mm)	101.6
Maximum Operating Temperature (°C)	50
Maximum Operating Temperature (°F)	122
Minimum Bundle Diameter (In.)	0.375
Minimum Bundle Diameter (mm)	9.5
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Outer Diameter (In.)	0.5
Outer Diameter (mm)	12.7
Overall Length (ft.)	100
Overall Length (m)	30.5
Standards Met	UL Recognized - E141152; UL94HB
Wall Thickness (In.)	0.06
Wall Thickness (mm)	1.52
Part Features	Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
