Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .38" (9.7mm) x 250', fire resistant polyethylene, natural. [T38R-TLY]; PAP211

Name: Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .38" (9.7mm) x 250', fire resistant polyethylene, natural. [T38R-TLY]; PAP211
Brand: Panduit
SKU: PAP211
Price: 8113500.0 VND
Availability: InStock

by Panduit

8.113.500₫

(Giá chưa VAT).

Mã kho: PAP211

Mã nhà sản xuất: T38R-TLY

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T38R-TLY

MÔ TẢ SẢN PHẨM

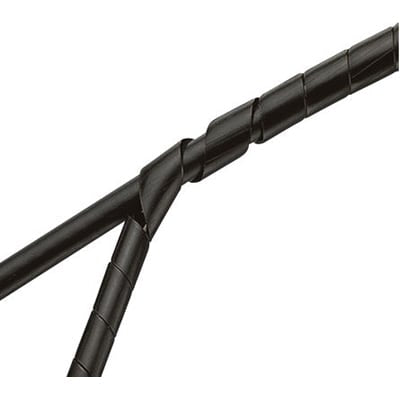

Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .38" (9.7mm) x 250', fire resistant polyethylene, natural.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Note	T38R-TLY replaces T38R-TL
Product Type	Spiral Wrap
Color	Natural
Flammability Rating	UL94V-2
Includes	Installation Tool
Material	Fire Resistant Polyethylene
Resistance Properties	Fire Resistant
Maximum Bundle Diameter (In.)	3
Maximum Bundle Diameter (mm)	76.2
Maximum Operating Temperature (°C)	50
Maximum Operating Temperature (°F)	122
Minimum Bundle Diameter (In.)	0.3125
Minimum Bundle Diameter (mm)	7.9
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Outer Diameter (In.)	0.38
Outer Diameter (mm)	9.6
Overall Length (ft.)	250
Overall Length (m)	76.2
Standards Met	UL Recognized E141152
Wall Thickness (In.)	0.05
Wall Thickness (mm)	1.3
Part Features	Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
