Panduit Spiral Wrap, Low Smoke/Halogen-Free Nylon 6.6 in black, Offers abrasion protection for wires, cables and hoses, 0.38" (9.5mm) x 100'. [T38NZFR-C20]; PAP208

Name: Panduit Spiral Wrap, Low Smoke/Halogen-Free Nylon 6.6 in black, Offers abrasion protection for wires, cables and hoses, 0.38" (9.5mm) x 100'. [T38NZFR-C20]; PAP208
Brand: Panduit
SKU: PAP208
Price: 7809800.0 VND
Availability: InStock

by Panduit

7.809.800₫

(Giá chưa VAT).

Mã kho: PAP208

Mã nhà sản xuất: T38NZFR-C20

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T38NZFR-C20

MÔ TẢ SẢN PHẨM

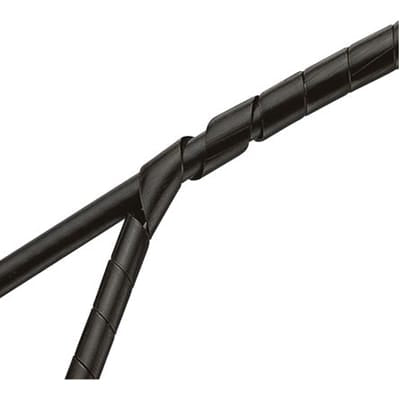

Spiral Wrap, Low Smoke/Halogen-Free Nylon 6.6 in black, Offers abrasion protection for wires, cables and hoses, 0.38" (9.5mm) x 100'.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Product Type	Spiral Wrap
Color	Black
Flammability Rating	UL94V-0
Includes	Installation Tool
Material	Low Smoke Halogen-Free Flame Retardant Nylon 6
Resistance Properties	Abrasion Protection
Maximum Bundle Diameter (In.)	3
Maximum Bundle Diameter (mm)	76.2
Maximum Operating Temperature (°C)	65
Maximum Operating Temperature (°F)	149
Minimum Bundle Diameter (In.)	0.3125
Minimum Bundle Diameter (mm)	7.9
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Outer Diameter (In.)	0.38
Outer Diameter (mm)	9.6
Overall Length (ft.)	100
Overall Length (m)	30.5
Standards Met	UL Recognized E141152
Wall Thickness (In.)	0.03
Wall Thickness (mm)	0.8
Part Features	Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
