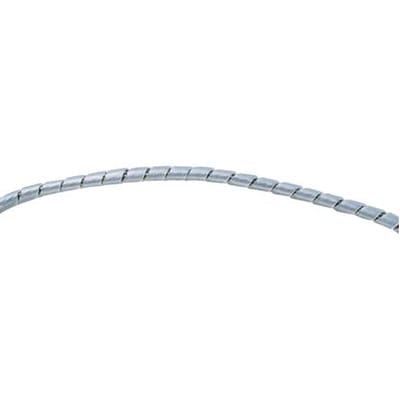

Panduit Spiral wrap, offers abrasion protection for wires, cables, hoses and tubing, .38" (9.7mm) x 100', polyethylene, natural. [T38F-C]; PAP198

Name: Panduit Spiral wrap, offers abrasion protection for wires, cables, hoses and tubing, .38" (9.7mm) x 100', polyethylene, natural. [T38F-C]; PAP198
Brand: Panduit
SKU: PAP198
Price: 2892400.0 VND
Availability: InStock

by Panduit

2.892.400₫

(Giá chưa VAT).

Mã kho: PAP198

Mã nhà sản xuất: T38F-C

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T38F-C

MÔ TẢ SẢN PHẨM

The T38F-C Polyethylene Spiral Wrap Product provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts of single or multiple cables. Lightweight, flexible, durable protection allows for

_THÔNG SỐ KỸ THUẬT:

Application	Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Product Type	Spiral Wrap
Color	Natural
Environment	Indoor
Flammability Rating	UL94-HB
Includes	Installation Tool
Material	Polyethylene
Resistance Properties	Abrasion Resistance
Maximum Bundle Diameter (In.)	3
Maximum Bundle Diameter (mm)	76.2
Maximum Operating Temperature (°C)	50
Maximum Operating Temperature (°F)	122
Minimum Bundle Diameter (In.)	0.3125
Minimum Bundle Diameter (mm)	7.9
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Outer Diameter (In.)	0.38
Outer Diameter (mm)	9.5
Overall Length (ft.)	100
Overall Length (m)	30.5
Standards Met	UL Recognized - E141152; UL94HB
Wall Thickness (In.)	0.055
Wall Thickness (mm)	1.4
Part Features	Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
