Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .19" (4.8mm) outside diameter, TFE, natural. [T19T-C]; PAP148

Name: Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .19" (4.8mm) outside diameter, TFE, natural. [T19T-C]; PAP148
Brand: Panduit
SKU: PAP148
Price: 17269300.0 VND
Availability: InStock

by Panduit

17.269.300₫

(Giá chưa VAT).

Mã kho: PAP148

Mã nhà sản xuất: T19T-C

Đơn vị tính: RL

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T19T-C

MÔ TẢ SẢN PHẨM

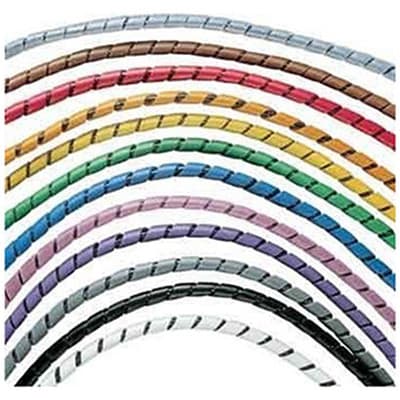

Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .19" (4.8mm) outside diameter, TFE, natural.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Product Type	Spiral Wrap
Color	Natural
Flammability Rating	UL94V-0
Includes	Installation Tool
Material	TFE
Resistance Properties	Abrasion Protection
Maximum Bundle Diameter (In.)	1
Maximum Bundle Diameter (mm)	25.4
Maximum Operating Temperature (°C)	180
Maximum Operating Temperature (°F)	356
Minimum Bundle Diameter (In.)	0.125
Minimum Bundle Diameter (mm)	3.2
Minimum Operating Temperature (°C)	-270
Minimum Operating Temperature (°F)	-454
Outer Diameter (In.)	0.19
Outer Diameter (mm)	4.8
Overall Length (ft.)	100
Overall Length (m)	30.5
Standards Met	UL Recognized E141152
Wall Thickness (In.)	0.03
Wall Thickness (mm)	0.8
Part Features	Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
