Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, 1" (25.4mm) outside diameter, TFE, natural. [T100T-X]; PAP103

Name: Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, 1" (25.4mm) outside diameter, TFE, natural. [T100T-X]; PAP103
Brand: Panduit
SKU: PAP103
Price: 13092400.0 VND
Availability: InStock

by Panduit

13.092.400₫

(Giá chưa VAT).

Mã kho: PAP103

Mã nhà sản xuất: T100T-X

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T100T-X

MÔ TẢ SẢN PHẨM

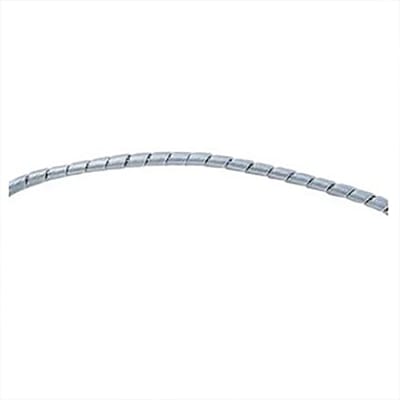

Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, 1" (25.4mm) outside diameter, TFE, natural.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Product Type	Spiral Wrap
Color	Natural
Flammability Rating	UL94V-0
Includes	Installation Tool
Material	TFE
Resistance Properties	Abrasion Protection
Maximum Bundle Diameter (In.)	6
Maximum Bundle Diameter (mm)	152.4
Maximum Operating Temperature (°C)	180
Maximum Operating Temperature (°F)	356
Minimum Bundle Diameter (In.)	0.875
Minimum Bundle Diameter (mm)	22.1
Minimum Operating Temperature (°C)	-270
Minimum Operating Temperature (°F)	-454
Outer Diameter (In.)	1
Outer Diameter (mm)	25.4
Overall Length (ft.)	10
Overall Length (m)	3.1
Standards Met	UL Recognized- E141152
Wall Thickness (In.)	0.04
Wall Thickness (mm)	1
Part Features	Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
