Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, 1" (25.4mm) x 100', fire resistant polyethylene, natural. [T100R-CY]; PAP102

Name: Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, 1" (25.4mm) x 100', fire resistant polyethylene, natural. [T100R-CY]; PAP102
Brand: Panduit
SKU: PAP102
Price: 9145600.0 VND
Availability: InStock

by Panduit

9.145.600₫

(Giá chưa VAT).

Mã kho: PAP102

Mã nhà sản xuất: T100R-CY

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T100R-CY

MÔ TẢ SẢN PHẨM

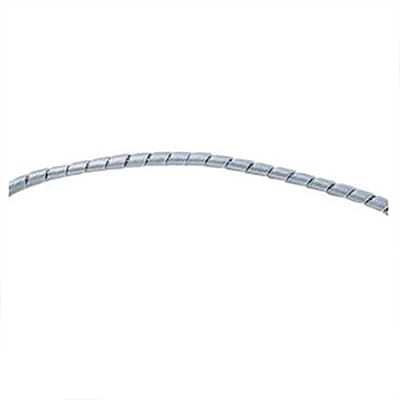

Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, 1" (25.4mm) x 100', fire resistant polyethylene, natural.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Note	T100R-CY replaces T100R-C
Product Type	Spiral Wrap
Color	Natural
Flammability Rating	UL94V-2
Includes	Installation Tool
Material	Fire Resistant Polyethylene
Resistance Properties	Fire Resistant
Maximum Bundle Diameter (In.)	6
Maximum Bundle Diameter (mm)	152.4
Maximum Operating Temperature (°C)	50
Maximum Operating Temperature (°F)	122
Minimum Bundle Diameter (In.)	0.875
Minimum Bundle Diameter (mm)	22.2
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Outer Diameter (In.)	1
Outer Diameter (mm)	25.4
Overall Length (ft.)	100
Overall Length (m)	30.5
Standards Met	UL Recognized- E141152
Wall Thickness (In.)	0.07
Wall Thickness (mm)	1.8
Part Features	Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
