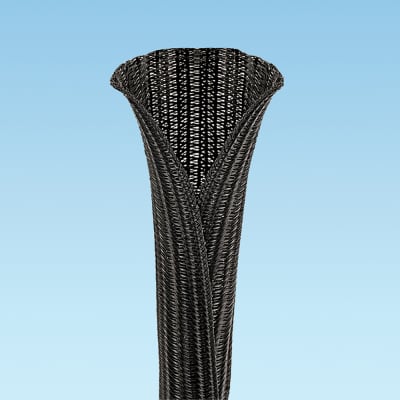

Panduit Pan-Wrap™ Braided Expandable Sleeving, 0.75" diameter, black, polyethylene terephthalate, 100 ft. per reel. [SE75PS-CR0]; PAO880

Name: Panduit Pan-Wrap™ Braided Expandable Sleeving, 0.75" diameter, black, polyethylene terephthalate, 100 ft. per reel. [SE75PS-CR0]; PAO880
Brand: Panduit
SKU: PAO880
Price: 8339000.0 VND
Availability: InStock

by Panduit

8.339.000₫

(Giá chưa VAT).

Mã kho: PAO880

Mã nhà sản xuất: SE75PS-CR0

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit SE75PS-CR0

MÔ TẢ SẢN PHẨM

The SE75PS-CR0 Pan-Wrap Braided Sleeving allows for installation after wire or cable is routed and terminated. Ideal for applications where re-entry is required and provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible, and the

_THÔNG SỐ KỸ THUẬT:

Application	Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes; Lengthwise slit allows product to be installed over cable with ends already terminated.
Note	Slit down length of product; Compatible with PWT75 Tool
Sub Brand	Pan-Wrap™
Material	Polyethylene Terephthalate (PET)
Flammability Rating	UL94V-0
Color	Black
Resistance Properties	Abrasion-Resistant
Standards Met	CSA Certified; UL Recognized E116868; RoHS Compliant
Maximum Operating Temperature (°C)	125
Minimum Operating Temperature (°C)	-70
Maximum Operating Temperature (°F)	257
Minimum Operating Temperature (°F)	-94
Nominal Diameter (In.)	0.75
Nominal Diameter (mm)	19.1
Overall Length (ft.)	100
Overall Length (m)	30.5
Product Type	Pan-Wrap™ Braided Sleeving
Part Features	Allows for installation after wire or cable is routed and terminated, Ideal for applications where re-entry is required, Provides continuous abrasion resistance for wires cables, and tubing, Lightweight durable protection, Highly flexible open weave will not trap heat or humidity
Maximum Bundle Diameter (In.)	0.75
Maximum Bundle Diameter (mm)	19.05
Minimum Bundle Diameter (In.)	0.63
Minimum Bundle Diameter (mm)	16
