Panduit Wire Routing, Management & Protection, [SE75P-CR0]; PAI402

Name: Panduit Wire Routing, Management & Protection, [SE75P-CR0]; PAI402
Brand: Panduit
SKU: PAI402
Price: 4855600.0 VND
Availability: InStock

by Panduit

4.855.600₫

(Giá chưa VAT).

Mã kho: PAI402

Mã nhà sản xuất: SE75P-CR0

Đơn vị tính: PC

Quy cách đóng gói: 1

Tồn kho: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit SE75P-CR0

MÔ TẢ SẢN PHẨM

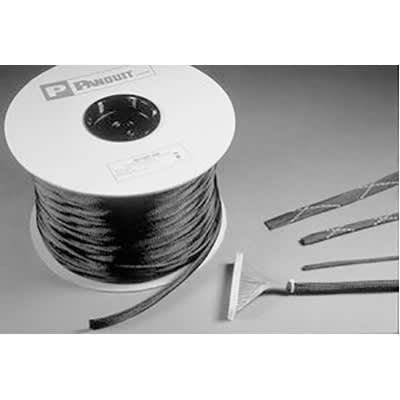

The SE75P-CR0 Braided Sleeving provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible, and the open weave will not trap heat or humidity. Complaint with U.S. and European passenger rail standards. Temperature range: -94°F – 257°F

_THÔNG SỐ KỸ THUẬT:

Application	Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes
Material	Polyethylene Terephthalate (PET)
Flammability Rating	UL94V-0
Color	Black
Resistance Properties	Abrasion-Resistant
Standards Met	CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Complaint
Maximum Diameter (In.)	1.25
Maximum Diameter (mm)	31.8
Maximum Operating Temperature (°C)	125
Minimum Operating Temperature (°C)	-70
Maximum Operating Temperature (°F)	257
Minimum Operating Temperature (°F)	-94
Nominal Diameter (In.)	0.75
Nominal Diameter (mm)	19.1
Overall Length (ft.)	100
Overall Length (m)	30.5
Product Type	Braided Expandable Sleeving
Part Features	Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards.
Maximum Bundle Diameter (In.)	1.25
Maximum Bundle Diameter (mm)	31.8
Minimum Bundle Diameter (In.)	0.5
Minimum Bundle Diameter (mm)	12.7
