Panduit Wire Routing, Management & Protection, [SE25PFR-TR0]; PAI398

Name: Panduit Wire Routing, Management & Protection, [SE25PFR-TR0]; PAI398
Brand: Panduit
SKU: PAI398
Price: 5658000.0 VND
Availability: InStock

by Panduit

5.658.000₫

(Giá chưa VAT).

Mã kho: PAI398

Mã nhà sản xuất: SE25PFR-TR0

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit SE25PFR-TR0

MÔ TẢ SẢN PHẨM

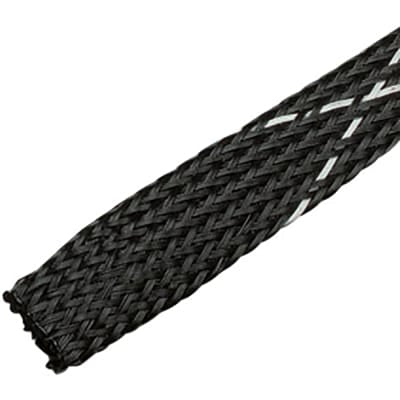

The SE25PFR-TR0 Braided Sleeving provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible. The open weave will not trap heat or humidity. Complaint with U.S. and European passenger rail standards. Temperature range: -94°F – 257°F (

_THÔNG SỐ KỸ THUẬT:

Application	Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes
Material	Flame Retardant Polyethylene Terephthalate (PET)
Flammability Rating	UL 1441 VW-1
Color	Black
Resistance Properties	Flame-Retardant
Standards Met	CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Complaint
Maximum Diameter (In.)	0.375
Maximum Diameter (mm)	9.5
Maximum Operating Temperature (°C)	125
Minimum Operating Temperature (°C)	-70
Maximum Operating Temperature (°F)	257
Minimum Operating Temperature (°F)	-94
Nominal Diameter (In.)	0.25
Nominal Diameter (mm)	6.4
Overall Length (ft.)	200
Overall Length (m)	61
Product Type	Braided Expandable Sleeving
Part Features	Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards.
Maximum Bundle Diameter (In.)	0.375
Maximum Bundle Diameter (mm)	9.5
Minimum Bundle Diameter (In.)	0.125
Minimum Bundle Diameter (mm)	3.2
