Panduit Pan-Wrap™ split harness wrap, .75" (19.1mm), 100 ft. (30m) per reel, polyethylene, orange. [PW75F-C3]; PAO418

Name: Panduit Pan-Wrap™ split harness wrap, .75" (19.1mm), 100 ft. (30m) per reel, polyethylene, orange. [PW75F-C3]; PAO418
Brand: Panduit
SKU: PAO418
Availability: InStock

by Panduit

0₫

(Giá chưa VAT).

Mã kho: PAO418

Mã nhà sản xuất: PW75F-C3

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit PW75F-C3

MÔ TẢ SẢN PHẨM

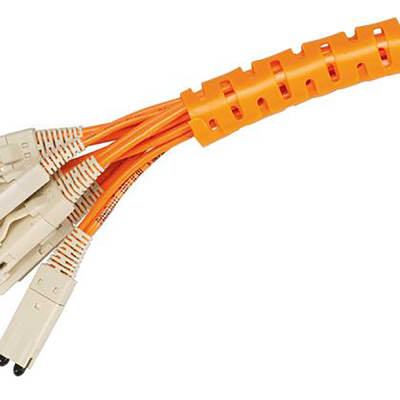

Pan-Wrap™ split harness wrap, .75" (19.1mm), 100 ft. (30m) per reel, polyethylene, orange.

_THÔNG SỐ KỸ THUẬT:

Application	Engineered for Flexibility, Maximum Protection of Wires and Cables and Considerably Reduced Installation Time
Product Type	Split Harness Wrap
Sub Brand	Pan-Wrap
Color	Orange
For Use With	PW75F
Material	Polyethylene
Maximum Bundle Diameter (In.)	0.81
Minimum Bundle Diameter (In.)	0.55
Maximum Bundle Diameter (mm)	20.6
Minimum Bundle Diameter (mm)	14
Maximum Operating Temperature (°C)	50
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°F)	122
Minimum Operating Temperature (°F)	-40
Nominal Diameter (In.)	0.75
Nominal Diameter (mm)	19.1
Overall Length (ft.)	100
Overall Length (m)	30.5
Material Flammability Rating	—
Part Features	Patented slot pattern provides improved flexibility and abrasion protection in any application; Unique wall design provides for easy cable breakouts; Reduces installation time; Large overlap accommodates a wide range of bundle diameters
Flammability Rating	UL94-HB
