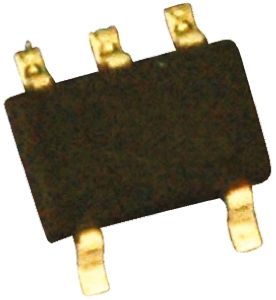

Toshiba TC7SG125FU(TE85L,F, Bus Buffer, 29.6 ns @ 1.3 V 8mA, 0.9 → 3.6 V, 5-Pin SSOP [TC7SG125FU(TE85L,F]; 639-6032
by Toshiba
0₫
Mã kho: 6396032
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Elements per Chip | 1 |
| Maximum Propagation Delay Time @ Maximum CL | 29.6 ns @ 1.3 V |
| Maximum High Level Output Current | -8mA |
| Maximum Low Level Output Current | 8mA |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 5 |
| Dimensions | 2 x 1.25 x 0.9mm |
| Height | 0.9mm |
| Length | 2mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Width | 1.25mm |
| Propagation Delay Test Condition | 30pF |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 0.9 V |
